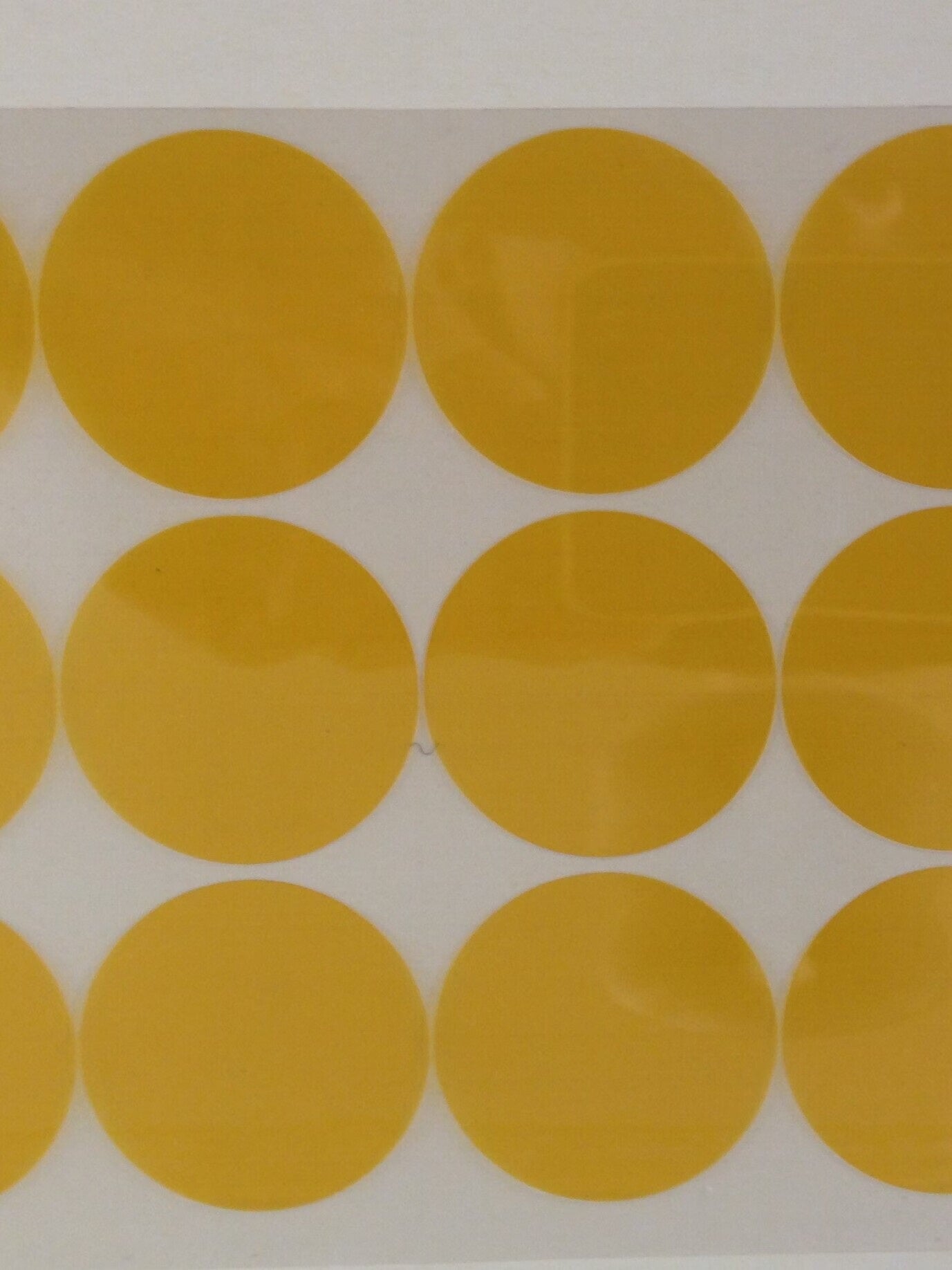

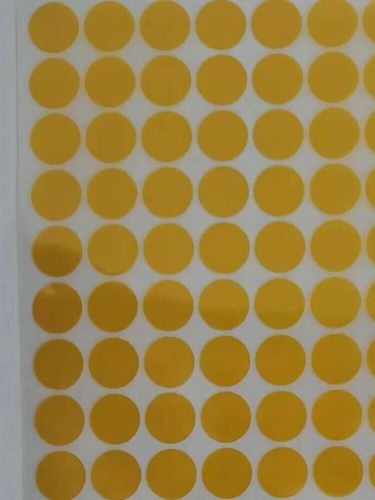

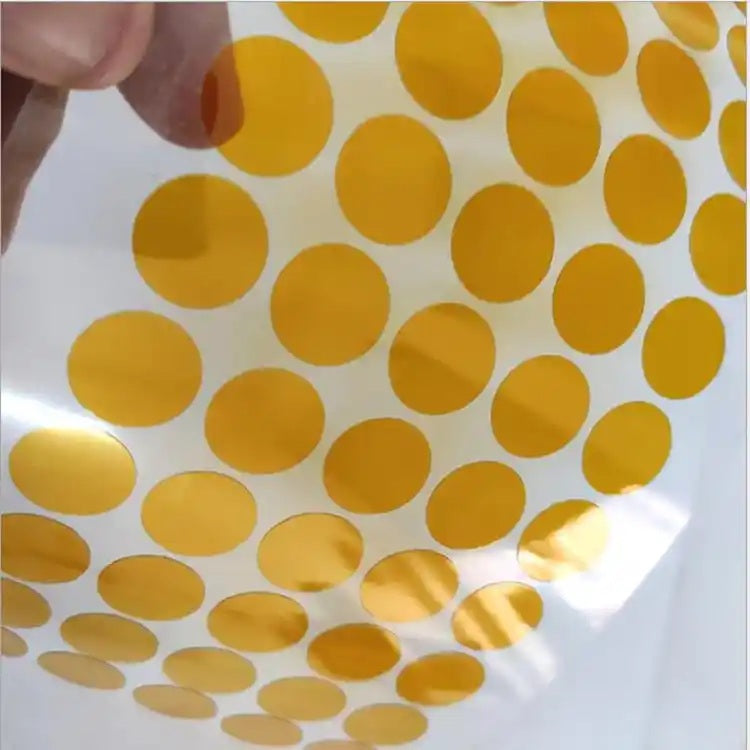

High Temperature Polyimide Masking Discs

Remarks:Customize the size and die-cutting according to customer requirements.

High Temperature Masking Discs, also known as Polyimide Masking Discs, are primarily used in circuit board production, wave soldering and other applications.These discs/dots are manufactured from commercial grade polyimide film with a special silicone adhesive. The polyimide carrier is only 1 Mil, making this tape extremely conformable for irregular shapes and surfaces. Designed for high temperature masking found in conformal coating of PCBs, protection of gold fingers during circuit board soldering and electrical insulation of high temperature coils, motors and transformers.

Specifications

Carrier - 1 Mil Polyimide
Adhesive - 1.5 Mil Silicone
Total Thickness Mils - 2.5
Tensile Strength (lb./in) - 30
Adhesion to Steel oz/in - 25
Dielectric Strength v/mil - 6500
Operating Temperature ℃ - 260℃

Product Features

Temperature Rating: 500° F / 260° C

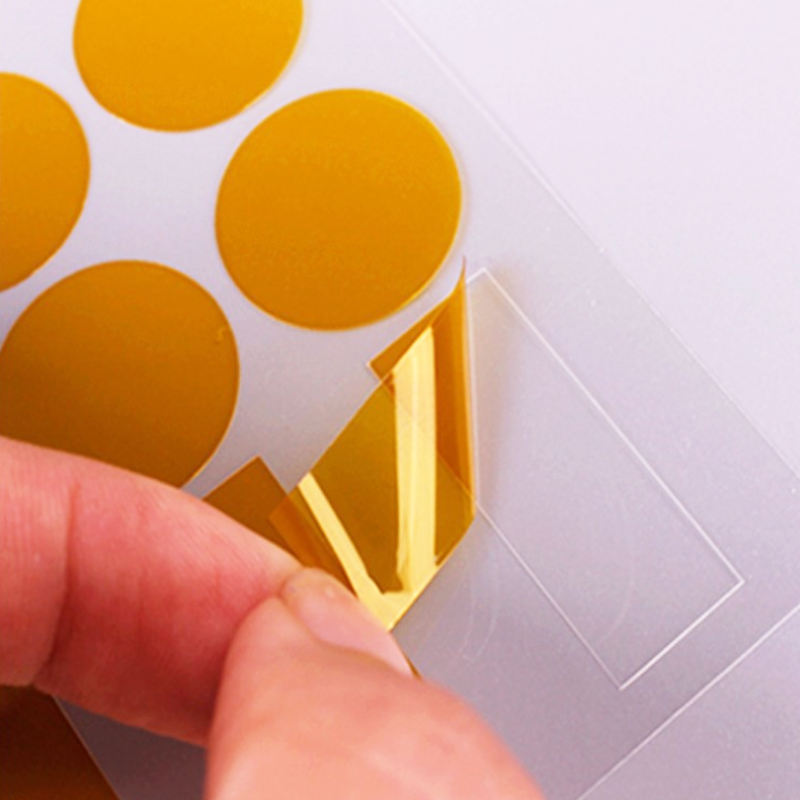

All die cuts 3/8" or larger come standard with a split-back liner. Split liner for smaller dimensions upon request
Meets Class H Requirements, flame retardant
Excellent dielectric strength and chemical resistance
Conformable for uneven surfaces or irregular shapes
Removes cleanly even after long bake cycles with no residue
Used in Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation
