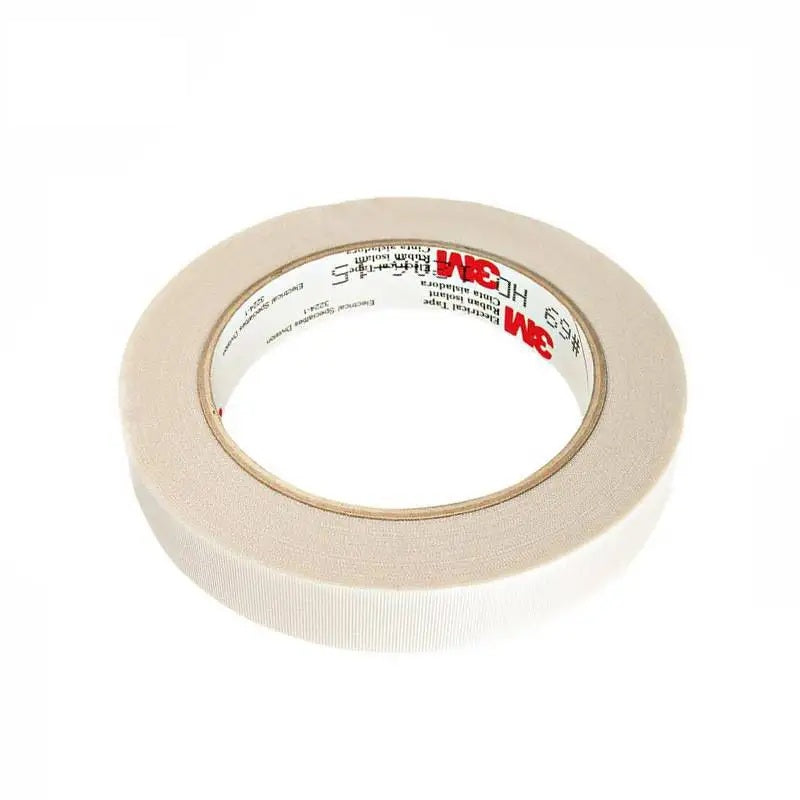

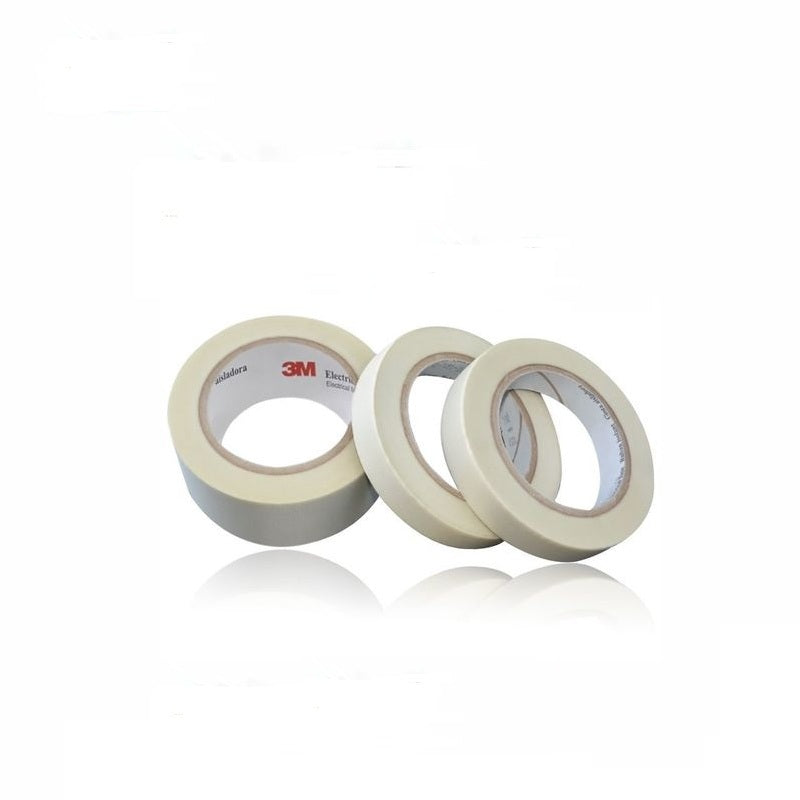

3M Glass Cloth Electrical Tape 69 with Silicone Adhesive
Remarks:Customize the size and die-cutting according to customer requirements.
Product Description

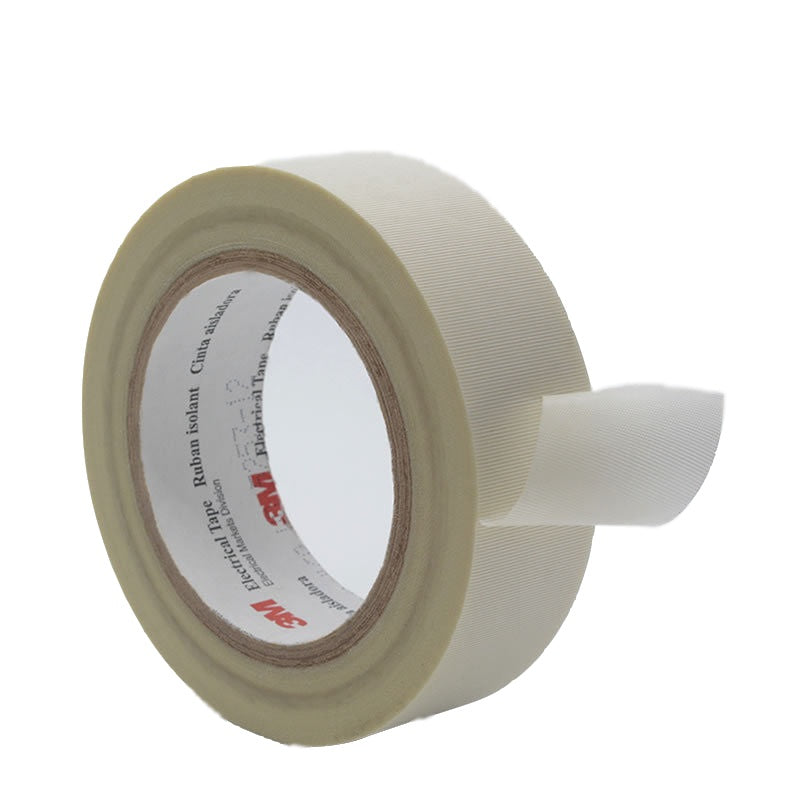

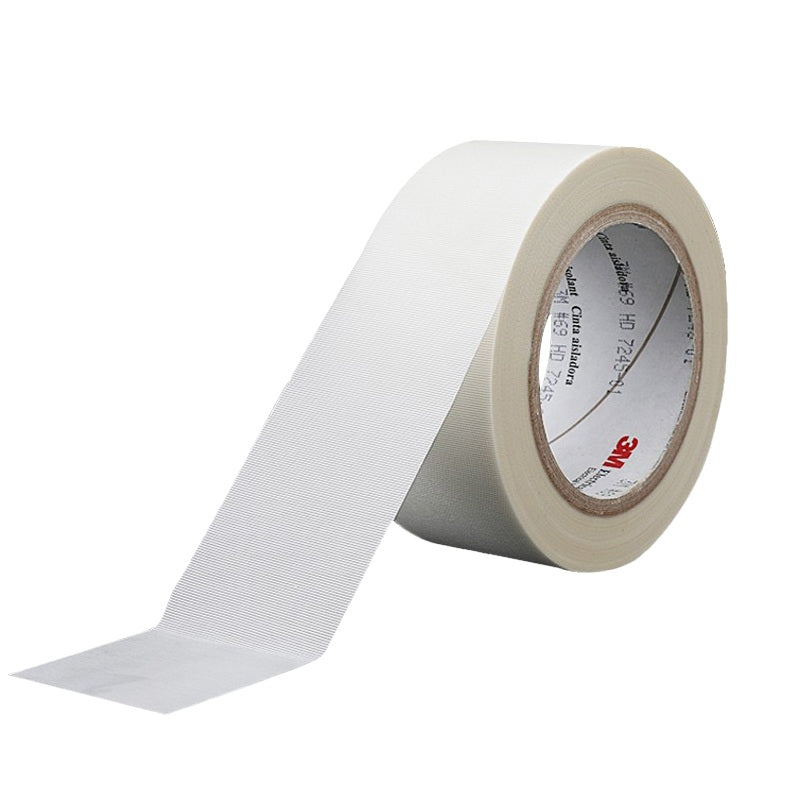

3M 69 Glass Cloth Electrical Tape is a white glass cloth tape with a high-temperature thermosetting silicone adhesive.3M Glass Cloth Electrical Tape 69 is a white, 7-mil (0.178 mm) thick tape composed of a 5.5-mil (0.140 mm) glass cloth backing coated on one side with a non-corrosive, hightemperature, flame retardant, thermosetting silicone pressure-sensitive adhesive. Scotch Glass Cloth Electrical Tape 69.
● Commonly used in UL applications rated up to 600 volts in dry locations as defined in the National Electrical Code.
● Commonly used in a variety of coil/transformer and motor applications including as an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold-down, end turns and lead anchor and connections.
● Adhesive does not require heat, moisture or other manner of preparation to affect application.
● Designed for continuous operation not exceeding 200°C (392°F) per UL listing, 180°C (356°F) per CSA listing .
| Physical Properties |
Value Imperial (Metric) |
Electrical Properties |
Value Imperial (Metric) |
||
| Color - Visual | White | Comparative Tracking Index (CTI)3 | I | ||
| Adhesive | Thermosetting Silicone | Dielectric Breakdown1- Minimum | 2000 V | ||
| Backing | Glass Cloth | Electrolytic Corrosion Factor2 | 0.9 | ||
| Mechanical Properties |
Value Imperial (Metric) |
Insulation Resistance1 – Minimum (High Humidity Method) |
50x106 Ω |
||
| Backing Thickness - Nominal | 5.5 mil (0.140 mm) | ||||
| Total Thickness1 |
7.0 +/- 1.0 mils (0.178 +/- 0.025 mm) |
||||
| Adhesion to Steel1 - Minimum | 30 oz/in (3.3 N/cm) | ||||
| Breaking Strength1 - Minimum | 150 lb/in (263 N/cm) | ||||
| Flame Retardant – UL 510 | Pass | ||||
| Notes: | |||||
| 1. ASTM D1000 Test Method - properties measured at room temperature 73°F (23°C) unless otherwise stated | |||||
| 2. 3M Test Method ETM-54001 - 0.9 value means tape or backing may promote corrosion | |||||
| 3. UL tested and meets the listed UL840 Material Group when tested to IEC 60112 on both sides of the tape | |||||
|
Agency Approvals & Self Certifications |
. UL Component Recognized: UL510A Standard, Category OANZ2, File No. E17385 . CSA Certified: Standard C22.2 No. 66, File No. 093411, Class 9052-30 . Qualified Product Listed: QPL-19166 per Governing Spec MIL-I-19166C . Self-certified to Commercial Item Description: A-A-59770A (2007), Type IV (GFT) |
||||
Remarks:Customize the size and die-cutting according to customer requirements.
